SteelMate TP-90 PRO DIY Motorcycle Tyre Pressure Monitoring System

Steelmate TP-90 PRO DIY Motorcycle Tyre Pressure Monitoring System

The award winning Steelmate TP-90 DIY motorcycle tyre pressure monitoring system (TPMS) can be easily installed within 30 minutes.

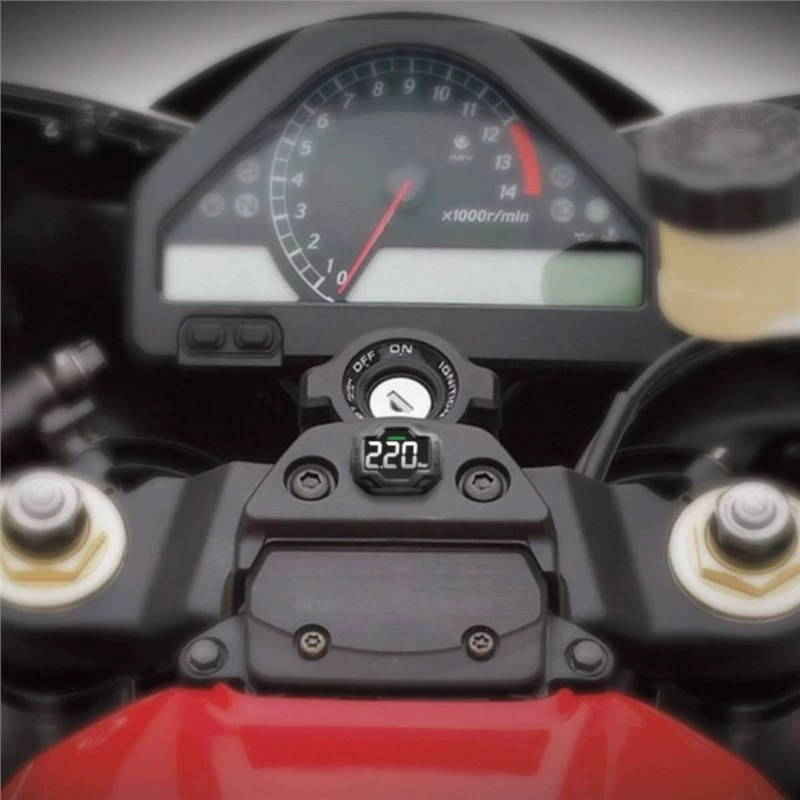

The system comes with 2 screw on sensors and a visual display that must be powered from a 12v ignition fed supply on the bike. The visual display shows in real time the current tyre pressures of both tyres in PSI/Bar format in a front and rear scrolling motion.

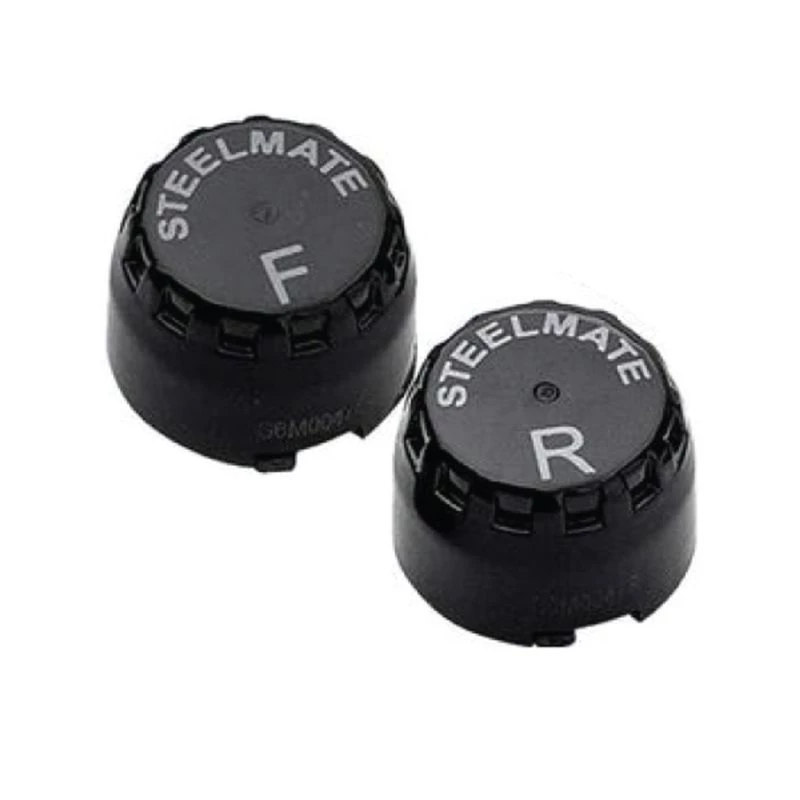

The visual display provides audible and visual warnings when a tyre pressure drops below or raises above the (pre-set) recommended level. Both sensors come pre paired to the correct wheel position and are labelled for easy installation, simply screw the sensors onto the motorcycle valve stem then lock in place with the provided locknut and tool.

Technical parameters:

Sensors:

• Operating Frequency: 433.92MHz
• Battery Voltage: 3V
• Battery Type: CR1632 (User Replaceable)
• Operating Temperature: -20°C – +60°C

Display:

• Operating Frequency: 433.92MHz
• Operating Voltage: 12v (+/- 3v)
• Operating Temperature: -40°C – +85°C
• Suitable for handlebar mounting up to 22mm or display can be removed from holder and stuck on a flat trim

Adjustable low/high pressure warning range:

Front tyre: 24-40 PSI / 1.7-2.8 Bar
Rear tyre: 26-44 PSI / 1.8-3.0 Bar
