Optimate Solar 60W Kit For 12V Batteries

Optimate Solar 60W Kit For 12V Batteries

The smart OptiMate Solar system includes a 60 Watt weatherproof solar panel and a smart OptiMate Solar combination charger-monitor controller, that charges & maintains a 12V battery during the day and monitors and displays the battery state of charge at night. Solar Panel Size: 68 x 65 cm

OptiMate SOLAR + 60W Solar Panel

OptiMate Solar – the worlds most efficient Solar Pulse Charger, Tester & Maintainer
Charger by day, Monitor by night.

The new OptiMate Solar range features a smart charger-monitor which provides battery status information when charging and when the battery is at rest overnight. The OptiMate Solar TM-523 7 Amp smart charger-controller has a 4-LED panel for comprehensive information on charge progress and battery status.

OptiMate Solar charge kits are fully automatic. Mount the panel in a suitable location to receive maximum sunlight, hook up the charger-monitor to the battery and walk away. No more battery problems.

When the panel receives sun, the SOLAR CHARGE LED blinks confirming solar power is being delivered and one of the three battery status LEDs (SAVE, CHARGE, MAINTAIN) indicates charge progress. OptiMate Solar converts low solar energy to a high pulse charge which improves solar charge efficiency. When night falls or if the smart charger-monitor senses no solar power is being delivered it changes into a battery monitor with one of the three charge status lights now indicating battery status every three seconds.

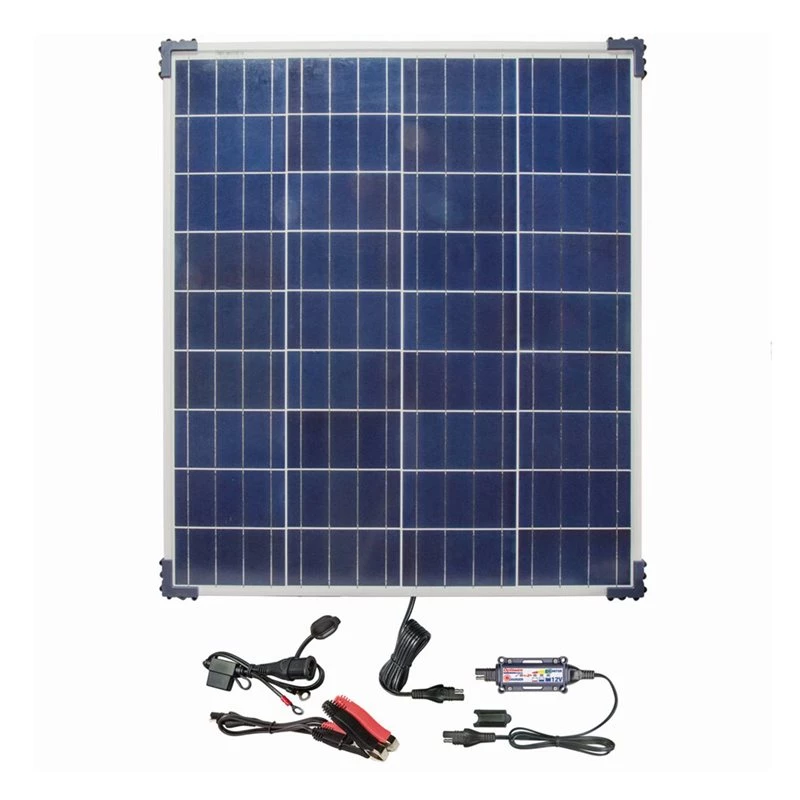

The 60W TM-523-6 kit (12V 5A max.) is ideal for all batteries from 15Ah upwards. The weatherproof solar panel includes corner mounts for easy wall or roof mounting. Each kit includes a high intensity poly crystalline panel with a 2m power cable, an OptiMate O-1 weatherproof battery lead, an OptiMate O-4 battery clamp lead and the outdoor rated OptiMate smart charger-controller (TM-522) with a 1m charge cable.

Technical Specifications

• Ideal for: 12V lead-acid batteries from 15Ah upwards including AGM (MF), Standard, GEL and AGM spiral cell
• Program control: 4 stages, fully automatic
• Max output current pulse (bulk charge): 7A
• Charge time limit: Safe to leave connected for seasonal maintenance
• Maintain / test cycles: Keeps battery at 100% charged when not in use
• Enclosure: fully sealed (IP54)
• Included Solar Panel: 40W Solar Panel
• Solar Panel Size: 680 x 650 x 30 mm
• Cable length: 2m from panel to charger; 1m from charger to output connector.
• Included accessories: 01 weatherproof permanent lead; 04 battery clamp lead
• Operation temperature range: From –20ºC 40°C
• Ratings / approvals: CE, NRTL (UL & CSA), SAA (AU & NZ)
• Warranty: 3 Years
