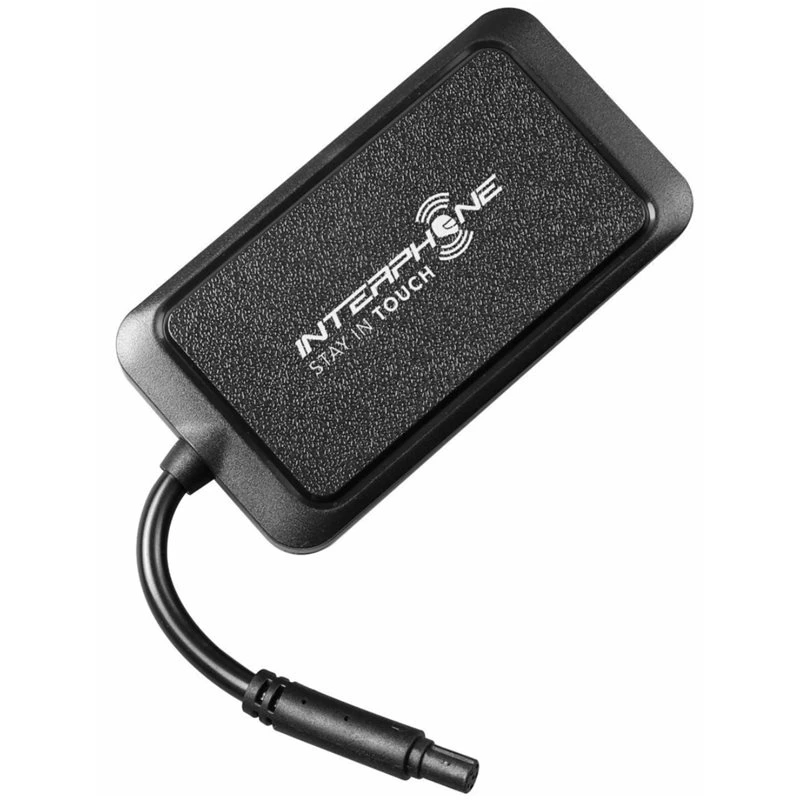

Interphone GPS ANGEL 20 Tracker

Interphone GPS ANGEL 20 Tracker

LOCATE YOUR MOTORBIKE IN EVERY INSTANT THANKS TO GPS TRACKER

GPS ANGEL is the GPS tacker for Motorcycles that gives you information on position and movements in real time. Control app, travel route download, location location, hidden LED and IPX65 certification

The trackers are ready to use, All you have to do is insert a SIM card with a data / voice plan and start tracking your motorcycle..

The small size also guarantees you a discrete installation.

To make using them even easier the devices can be managed via SMS or, alternatively, through a dedicated App (in subscription).

The certified impermeability makes them resistant to rain or water during the ordinary maintenance.

Why choose the GPS Angel 20 over the 10?

• Lifetime app fee included
• Wiring with fuse & fuel cut off
• Remotely cut off fuel
• 5 Hours internal battery life
• Reduces power consumption when idle
• Multiple Alarms, They Will be activated if overspeed, Vibration, are detected.
• Detection of ignition status, to know if ignition is started or stopped.
• surge protection of vechicle battery

SPECIFICATION

GPS iANGEL10 GPS iANGEL20

GENERAL CHARACTERISTICS

• GPS + LBS It allows to locate the position in real time or periodically
• IPX5 waterproof Water resistant to guarantee operation stable
• ACC detection To know when the ignition is started and stopped
• Compact size and hidden LED To position it discreetly

GSM SPECIFICATIONS

• Communication system: GSM
• GSM frequency: 850/900/1800 / 1900MHz
• GPRS class: 12, TCP / IP
• Memory: 32 + 32 Mb
• Phase error: RMSPE
• Maximum output: GSM850 / GSM900: 33 ± 2 dBm

GSM1800 / GSM1900: 30 ± 2 dBm

• Maximum frequency error: ± 0.1 ppm
• Reception sensitivity: Class II RBER2% (- 102dBm)

GPS SPECIFICATIONS

 Chipset: high sensitivity GPS chip
• Frequency: GPS L1, 1575.42 MHz
• Channel: 66
• Position accuracy:
• Tracking sensitivity: -165 dBm
• Acquisition sensitivity: -148 dBm

FUNCTIONS AND CONTENTS OF THE PACK

• GSM / GPS antenna: integrated quad band GSM antenna, ceramic GPS antenna
• LED indicator: GPS (blue), GSM (green)
• Working voltage / current: 9-36 VDC / 32 mA (12VDC), 18 mA (24 V DC)
• Standby current: ≤5mA
• Operating temperature: -20 ° ~ + 70 °
• Waterproofing rate: IPX5
• Battery: 100mAh / 3.7V industrial lithium battery
• Weight of the device: 26.6 g
• Size of the device: 73.8 (L) × 25.9 (L) × 12.2 (A) mm
